CCD wheel aligner RAVTD2.0WIFI | Standard

A New Wheel Alignment Concept

The wheel aligner system RAVTD2.0WIFI is a new conception of CCD technology. Totally PC-free, data are transmitted between the sensors and a compatible latest generation Bluetooth tablet. The measuring heads and their support are designed to adapt to all types of workshop.

Overview

Features and Benefits:

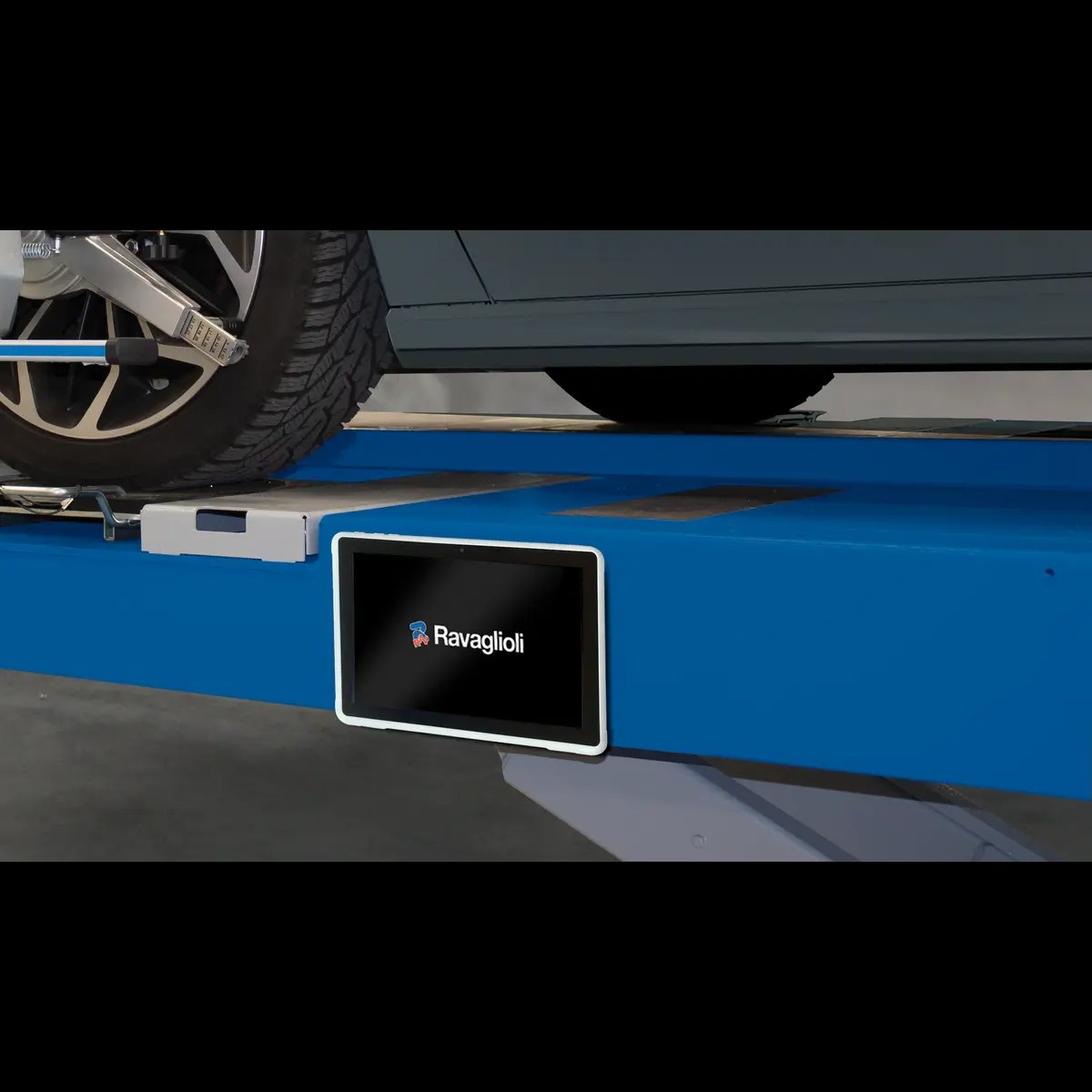

• Complete control of operations: the operator can monitor the wheel alignment operations with a tablet easy to position on the lift

• Space-saving design: alignment operations are performed in total freedom without space occupied by a console, a data transfer tower or a PC

• Bluetooth connection: the sensors and tablet fully communicate via compatible Bluetooth connection

• Compact and lightweight measuring heads

• Short installation time

• Hi-tech design

• Compact and lightweight measuring heads

• Tablet extremely lightweight but boasting an attractive design long lifetime

Specifications

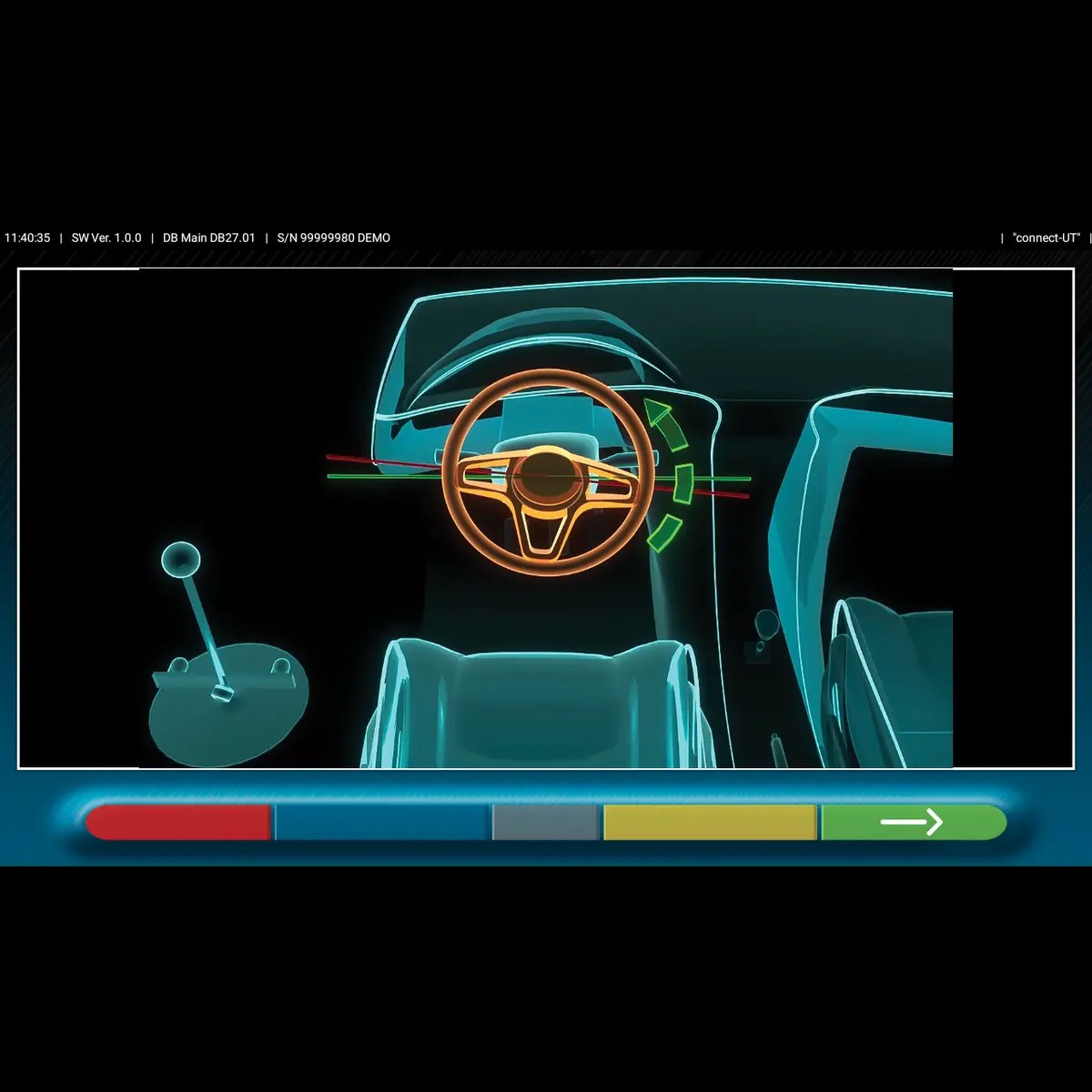

• Software totally rewritten for Android with updated graphics, animations and adjustment aids so work is rapid and effective

Dust- and water-resistant (IP52)Fall-resistant up to 76 cm64 GB of memoryDisplay 800 x 1280Complete with adhesive magnetsRounded edges to ensure greater sturdiness2 MP front camera + 5 MP rear cameraWeighs less than 700 g

• 10″ multi-touch 800 x 1280 tablet complete with adhesive magnets

• 8 CCD sensors with bearings, encoder rapid charging sockets

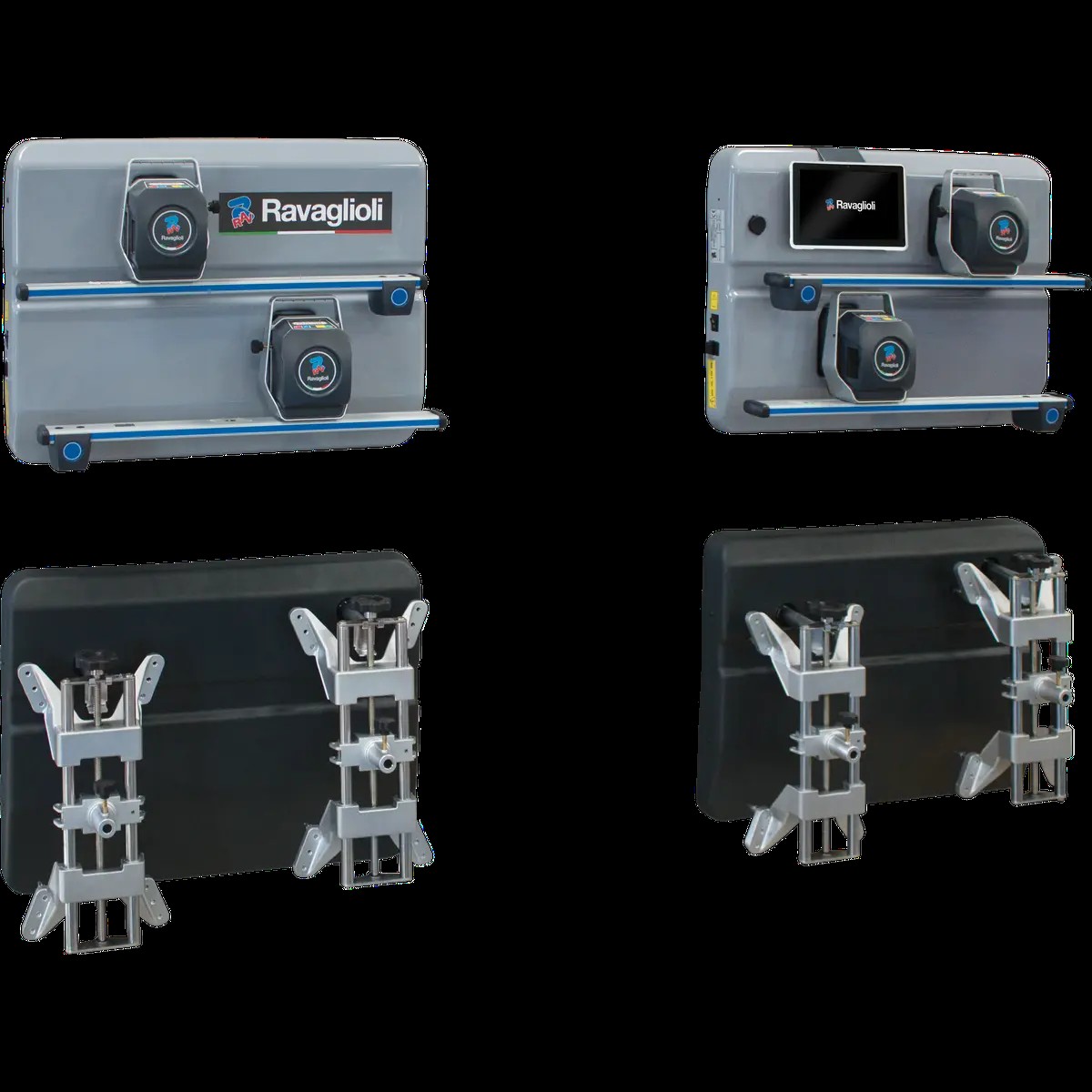

• 2 wall-mounted panels with recharging for the measuring heads, and USB charging port for the tablet

• 2 pairs of STDA33EU 4-point clamps

• The acoustic aid makes adjustment easier when the screen is hidden

• All-included: The system is fully pre-assembled so it can be put into service quickly

• Pair of S110A7/P turntables (included)

• 1 STDA161 steering wheel lock (included)

• 1 brake pedal arrestor (included)

• Possibility to send test reports directly to the customer by e-mail

• Possibility to add a photo with vehicle details to the print report
