Apex 9

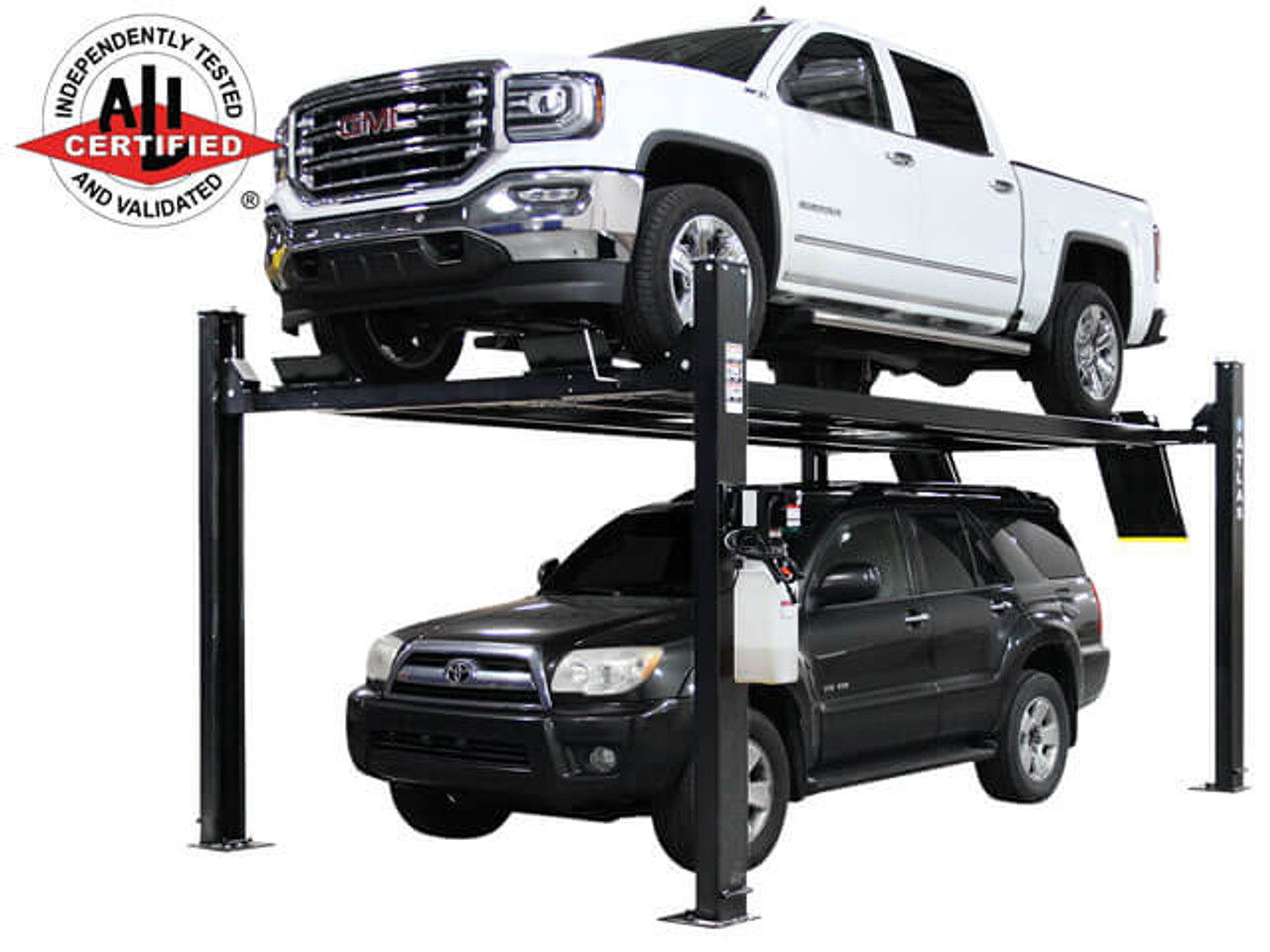

ALI Certified Hobbyist 9,000 Lb. Capacity 4 Post Parking Car Lift
All Atlas portable four post lifts (9,000 lb. capacity) are designed and built for use by Mr. Homeowner or restoration shop. These lifts are not designed to work in commercial repair shops that raise and lower a lift several times per day. If you have questions about which lift will best suit your application, we would be happy to provide a quote.
Overview
ALI Certified
9,000 lb. Capacity
Atlas Powder Coat Finish
Single Point Lock Release
Lock Ladder Design
Double Lock Safety System
Anchor Bolts Optional (Sold Separately)
Four Wheel Stops (Included)

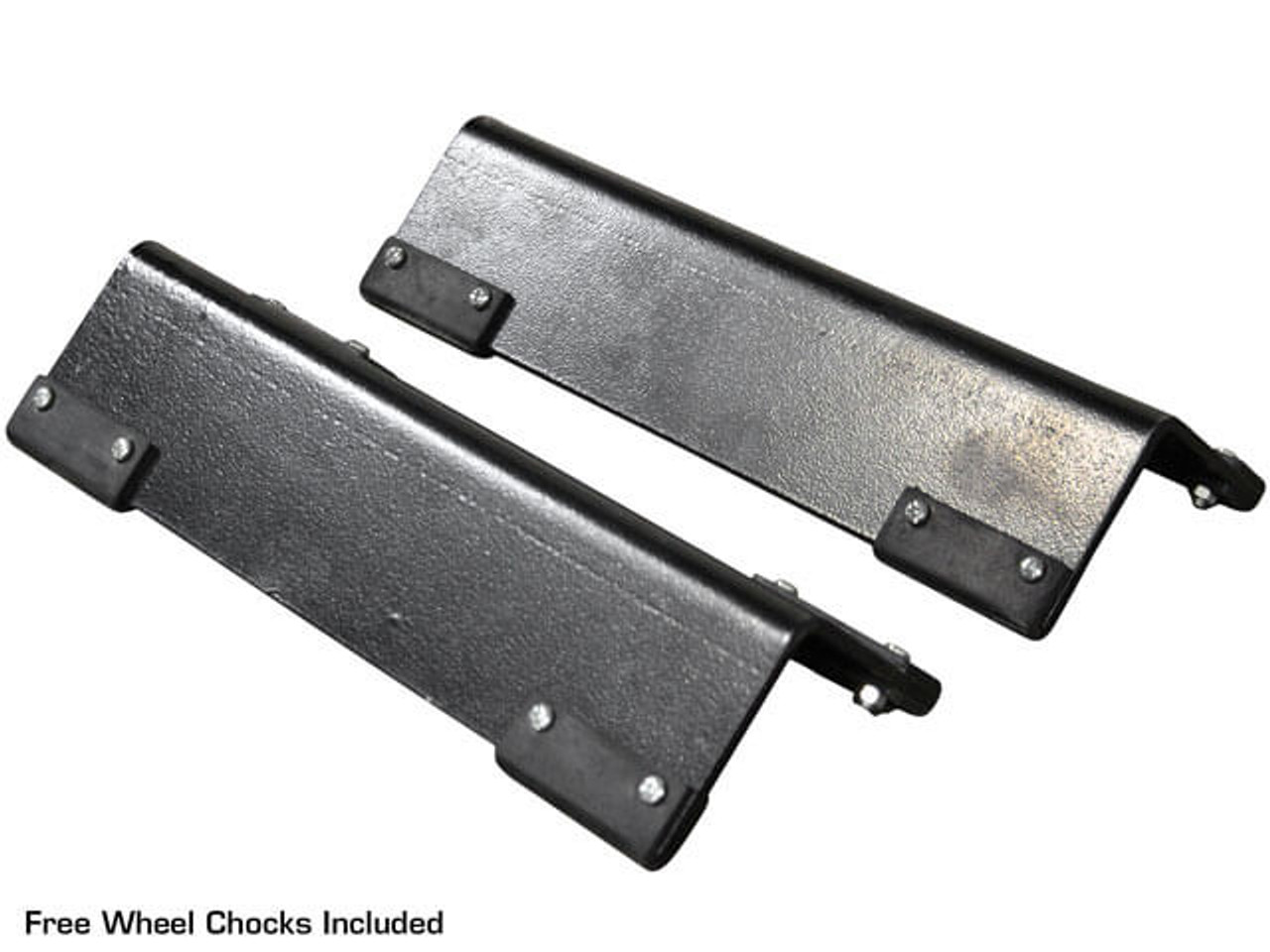

Two Rubber Wheel Chocks (Included)
Caster Kit with Polyurethane Wheels (Included)

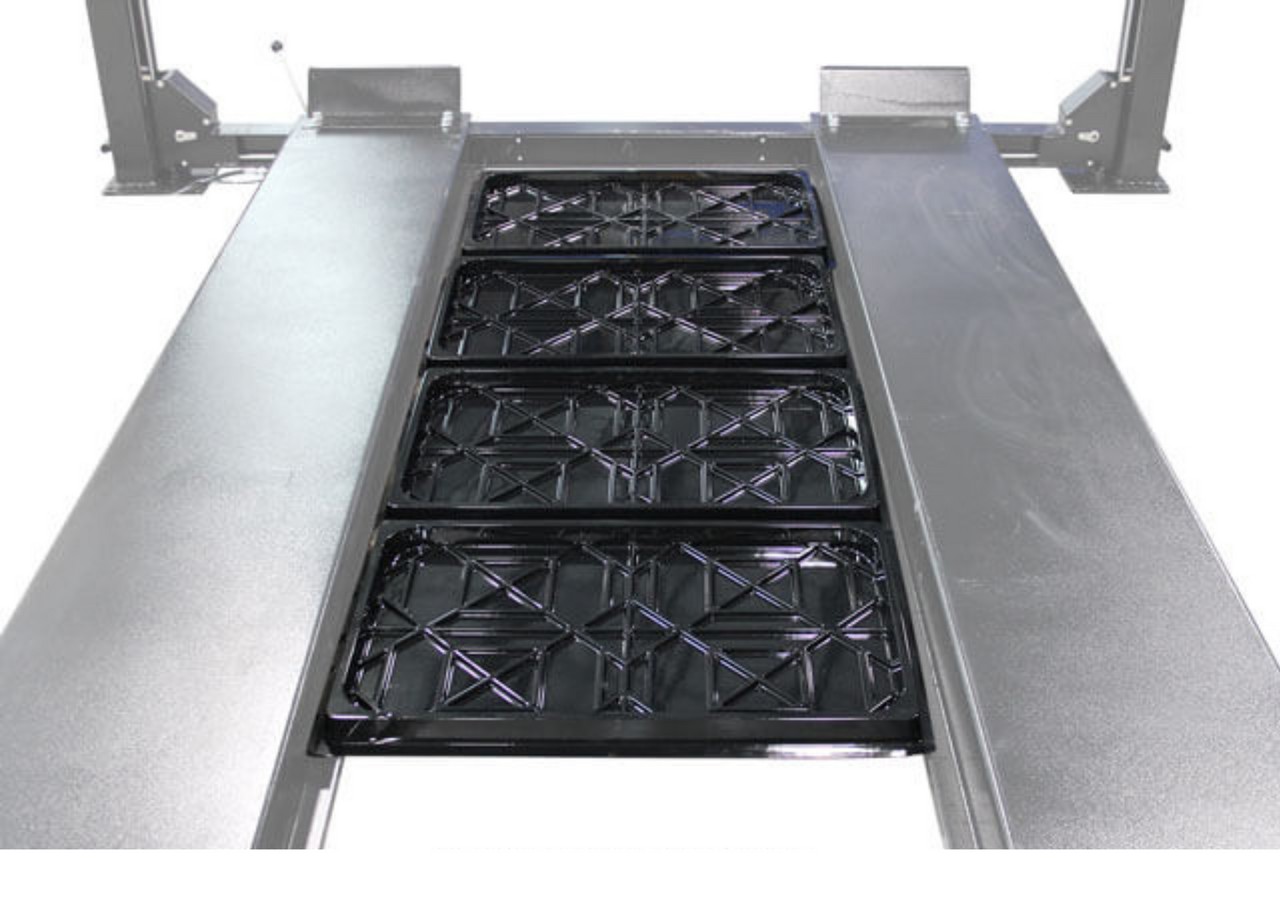

Drip Trays (Included)
Jack Trays (Included)
Perfect For Storing Or Working On Vehicles
Shipping Weight: 2,975 lbs.
Specifications
Capacity 9,000 lb.
Lifting Height To Top of Runway (On Locks) 80 7/8" (6' 8 7/8")
Clearance Under Runways 75 1/2" (6' 3 1/2")
Height of Columns (Including Nuts) 103 1/4" (8' 7 1/4")
Overall Width (Without Motor or Casters) 121 7/8" (10' 1 7/8")
Overall Width (With Motor) 133 7/8" (11' 1 7/8")
Overall Length without Approach Ramps Or Lock Release Bar 204 1/8" (17' 1/8")
Overall Length with Approach Ramps (Including Lock Release Bar) 243" (20' 3")
Approach Ramps 31 1/2"
Runway Width 20 1/8"
Runway Rail Width 2 1/8"
Runway Length 188 1/2" (15' 8 1/2")
Runway Thickness 4 7/8"
Width Between Runways 38 7/8"
Width Between Runway Rails 34 3/4"
Outside Runway to Outside Runway 79 1/8" (6' 7 1/8")
Size of Column 7 5/8" x 4 5/8"
Clearance Between Columns 108 1/8" (9' 1/8")
Length Between Columns 184 1/4" (15' 4 1/4")
Base of Column 11 5/8" x 11 5/8"
Maximum Wheel Base 194" (16' 2")
Drive Thru (Outside of tire to outside of tire) 97" (8' 1")

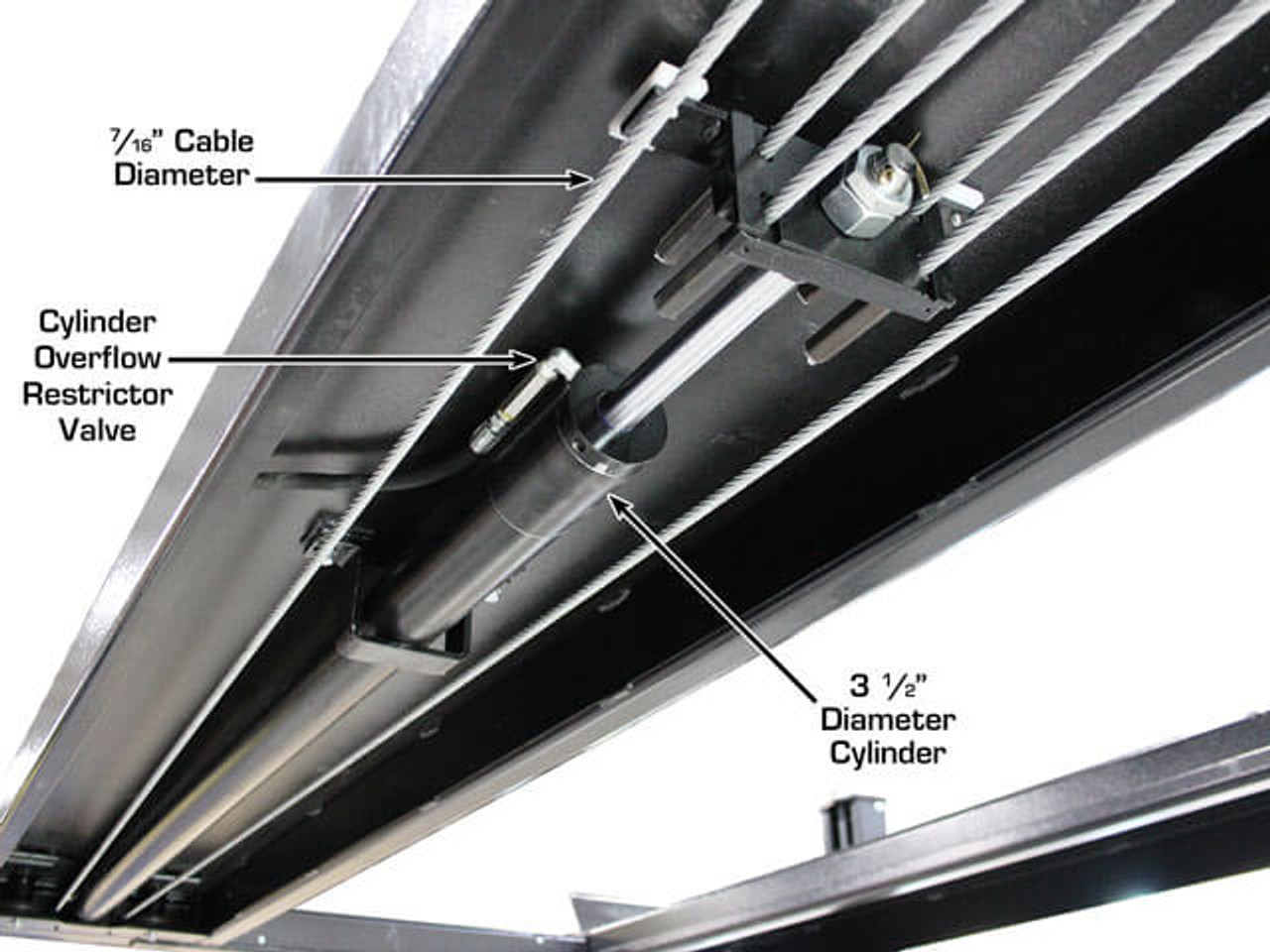

Cable Diameter 7/16" (.4375")
Gauge of Steel 6 Gauge (.1875" / 3/16" / 4.75mm)

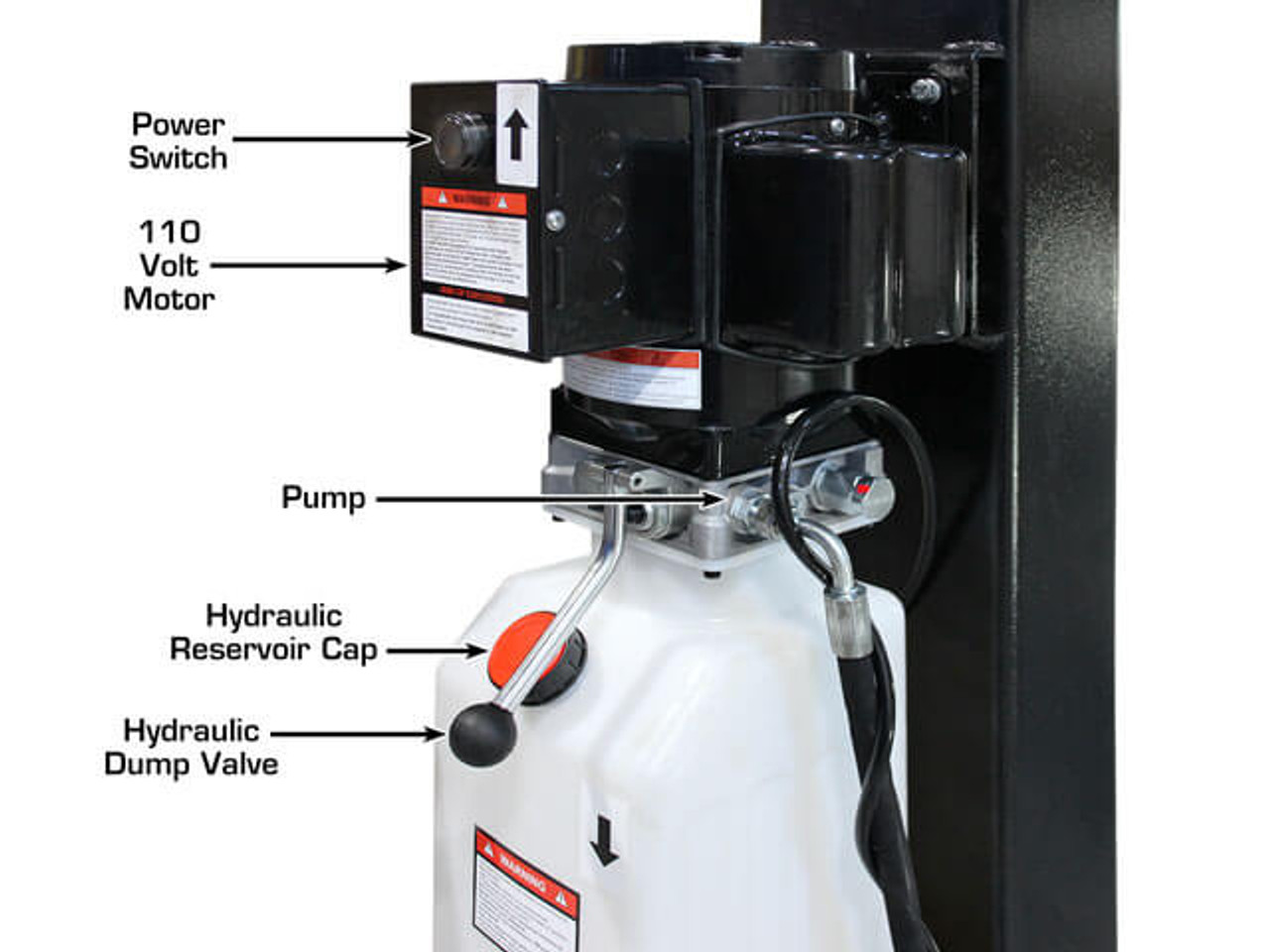

Motor/Electrical Requirement 110 Volt, Single (1) Phase
Oil Requirement 2.6 Gallons AW32/AW46
Shipping Weight 2,975 lb.
